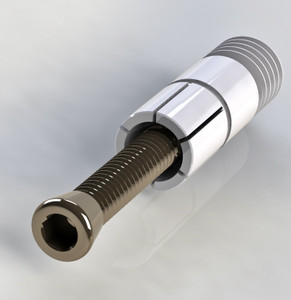

Mitee-Bite Threaded Pin - 31850
Brand: Mitee-Bite- SKU:
- 31850
- ID:
- 319163
| A | 1.625″ |
| B | 0.60″ |
| C | .053″ |
| D | .050″ |
| F (+/-) .000/.001″(.000/.025mm) | .500″ |
| G* | .0.413″ |
$59.95
Mitee-Bite Threaded Pin - 31850
Threaded XYZ Pins incorporate an internal rotary broached hex for simple installation and removal from a tombstone, grid plate or fixture plate. Threaded Pins may be installed in a drilled and reamed hole for precise location or set in a hardened drill bushing for fixture strength and wear resistance. To install a Threaded XYZ Pin in a precision bore, drill and ream the hole over the nominal diameter minimum of +0.0001 to +0.0005″. (+.003 to +0.013mm).
*G – Minimum diameter pin can be machined or turned down to
** Torque of pin body needs to exceed torque of tapered screw
See all Mitee-Bite Threaded Pins
