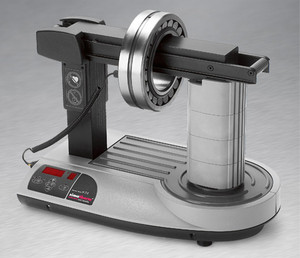

Simatec Simatherm Induction Heater IH 210
The most powerful table-top heater - for heating large rolling bearings up to 300 kg
The IH 210 is intended to heat large work pieces up to 300 kg. The IH 210 comes equipped with two yokes. Due to the sliding yoke one can mount and remove the work piece.
An additional benefit of the IH 210 is its built in air cooling system (IH 210F), which allows continuous operation or even a higher platform for larger work pieces (IH 210XL).
Features:
- For rolling bearings weighing up to 300kg (661lb)
- For workpieces with inner diameter of 60 to 640mm (2.4 to 25.2in)
- Also included: 2 yokes, 1 temperature probe, 1 pair of protective gloves
- Available for voltages of 200, 400–460 and 500–575V
- Extremely simple operation thanks to the sliding yoke
About Simatherm Induction Heaters:
The best way to avoid unwanted stresses when assembling interference-fit parts is to heat the outer part just enough to produce a temporary clearance. Simatherm induction heaters allow this to be done precisely, evenly, quickly and efficiently. Other methods of heating are slower, less controlled and can cause more harm than good to bearings.
Advantages:
- Precise, even, quick heating
- There is no risk of damage (from excessive mechanical stress, open flames, dirty oil baths, excessively hot ovens and plates)
- Automatic demagnetization
- User friendly
- Increased operational safety
- Selectable power reduction for heating up smaller parts
Click to View More Information
Specifications:
| Type | IH 210 |
| Description | Induction heater for large workpieces |
| Designation | IH 210/400 V (Art. 110.1501) IH 210/575 V (Art. 110.1503) IH 210/200 V (Art. 110.1502) |
| Voltage | 400-480 V 575 V 200-230 V |
| Frequency | 50-60 Hz 50-60 Hz 50-60 Hz |
| max. Amperage | 25 A 18 A 40 A |
| Power | 10-11.5 kVA 10.4 kVA 8-9.2 kVA |
| Max. weight of rolling bearing | 300 kg (661 lbs.) |
| Bore diameter | 60-640 mm (2.4-25.2 in) |
| Temperature range | 20-250 °C (68-482°F) |
| Magnetic probe | Yes, type K |
| Accuracy (electronic) | ± 3 °C (37.4°F) |
| Range of time control | 0-60 minutes |
| Time setting in steps | 0.1 minutes |
| Maximum temperature (approx.) | 400 °C (752°F) |
| Variable power level | 5 levels: 20-40-60-80-100% |
| Automatic demagnetization | Yes |
| Residual magnetism | < 2A/0.4in |
| Coil diameter | 135 mm (5.3 in) |
| Size of operating area (W x H) | 250 x 250mm (9.8 x 9.8 in) optional (Art. 110.1504): 250 x 376 mm (9.8 x 14.8 in) |
| Dimensions (L x W x H) | 650 x 350 x 420 mm (25.6 x 13.8 x 16.5 in) |
| Overall weight | 75 kg (165.3 lbs.) |
| Number of standard yokes | 2 |
| Standard yokes | 2.8 x 2.8 x 16.5 in for bearings with a bore diameter of at least 4 in |
| Core cross section | 70 x 70 mm (2.8 x 2.8 in) |
| Movable yoke | Sliding yoke |
| Cooling fan | Optional (Art. 110.1505) |
