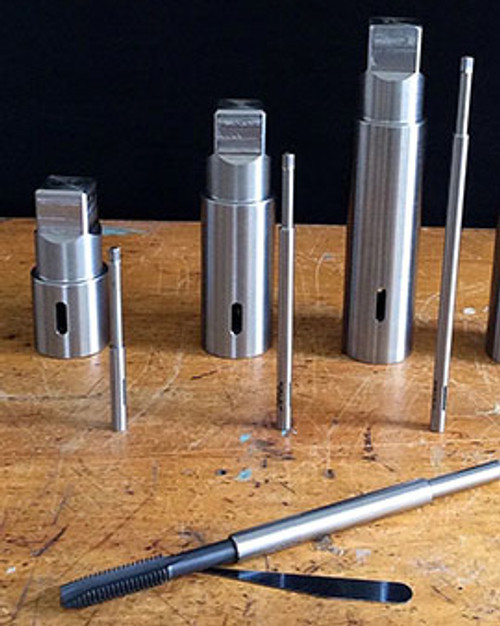

Tap Associates Inc. Tap Extensions
For machine or hand tapping applications
Features:
- No set screws, collars, or collets required!
- Minimal shank diameters for close quarter tapping
- Patented, for use with all standard shank machine and hand taps
Specifications:
| Item Number | 74-761-8 | 74-762-6 | 74-763-4 | 74-764-2 | 74-765-9 |
| Model | 1014 | 1024 | 1034 | 1044 | 1054 |
| Tap Size | #0 - 6 | #8 | #10 | #12 | 1/4" |
| Overall Length | 4" | 4" | 4" | 4" | 4" |
| Maximum Extension Diameter (A) | 0.250" | 0.250" | 0.250" | 0.312" | 0.375" |
| Maximum Tap Shank Accepted (B) | 0.141" | 0.168" | 0.194" | 0.220" | 0.255" |
| Maximum Tap Square Accepted (C) | 0.110" | 0.131" | 0.152" | 0.165" | 0.191" |
| Length of Small Shank of Extension (D) | - | - | - | 1.500" | 1.500" |
| Diameter of Small Shank of Extension (E) | - | - | - | 0.220" | 0.255" |
| Square Shank of Extension (F) | 0.191" | 0.191" | 0.191" | 0.165" | 0.191" |
| Item Number | 74-766-7 | 74-767-5 | 74-768-3 | 74-769-1 |
| Model | 1064 | 1074 | 1084 | 1094 |
| Tap Size | 5/16" | 3/8" | 7/16" | 1/2" |
| Overall Length | 4" | 4" | 4" | 4" |
| Maximum Extension Diameter (A) | 0.437" | 0.500" | 0.500" | 0.500" |
| Maximum Tap Shank Accepted (B) | 0.318" | 0.381" | 0.323" | 0.367" |
| Maximum Tap Square Accepted (C) | 0.238" | 0.286" | 0.242" | 0.275" |
| Length of Small Shank of Extension (D) | 1.500" | 1.500" | 1.500" | 1.500" |
| Diameter of Small Shank of Extension (E) | 0.318" | 0.381" | 0.323" | 0.367" |
| Square Shank of Extension (F) | 0.238" | 0.286" | 0.242" | 0.275" |
| Item Number | 74-781-6 | 74-782-4 | 74-783-2 | 74-784-0 | 74-785-7 |
| Model | 1016 | 1026 | 1036 | 1046 | 1056 |
| Tap Size | #0 - 6 | #8 | #10 | #12 | 1/4" |
| Overall Length | 6" | 6" | 6" | 6" | 6" |
| Maximum Extension Diameter (A) | 0.250" | 0.250" | 0.250" | 0.312" | 0.375" |
| Maximum Tap Shank Accepted (B) | 0.141" | 0.168" | 0.194" | 0.220" | 0.255" |
| Maximum Tap Square Accepted (C) | 0.110" | 0.131" | 0.152" | 0.165" | 0.191" |
| Length of Small Shank of Extension (D) | - | - | - | 1.500" | 1.500" |
| Diameter of Small Shank of Extension (E) | - | - | - | 0.220" | 0.255" |
| Square Shank of Extension (F) | 0.191" | 0.191" | 0.191" | 0.165" | 0.191" |
| Item Number | 74-786-5 | 74-787-3 | 74-788-1 | 74-789-9 |
| Model | 1066 | 1076 | 1086 | 1096 |
| Tap Size | 5/16" | 3/8" | 7/16" | 1/2" |
| Overall Length | 6" | 6" | 6" | 6" |
| Maximum Extension Diameter (A) | 0.437" | 0.500" | 0.500" | 0.500" |
| Maximum Tap Shank Accepted (B) | 0.318" | 0.381" | 0.323" | 0.367" |
| Maximum Tap Square Accepted (C) | 0.238" | 0.286" | 0.242" | 0.275" |
| Length of Small Shank of Extension (D) | 1.500" | 1.500" | 1.500" | 1.500" |
| Diameter of Small Shank of Extension (E) | 0.318" | 0.381" | 0.323" | 0.367" |
| Square Shank of Extension (F) | 0.238" | 0.286" | 0.242" | 0.275" |
