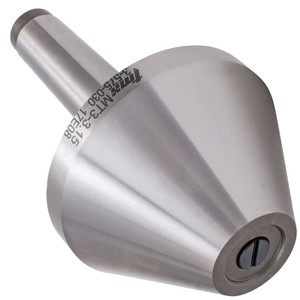

TMX Bull Head Live Center, MT3, 3.98" Dia - 3-575-031P
Brand: TMX- SKU:
- 3-575-031P
- ID:
- 363077
| Morse Taper | MT 3 |
| Dia | 3.98" |
| T.I.R. | 0.0003" |
| Max Speed | 3000 RPM |
| Max Workpiece Wt. | 1210 lbs. |
| Weight | 5 lbs. |
$329.95
TMX Bull Head Live Center, MT3, 3.98" Dia - 3-575-031P
Bull Nose & Pipe Live Center MT3
Head Diameter: 3.98in
T.I.R.: .0003
TMX by Toolmex MADE IN EUROPE
(Compare to Bison® Model 8825 - Series 7-575)
Three matched bearings are preloaded at the factory. This provides good thrust and radial capabilities. The bearings are protected by a special seal. The head is made of high carbon alloy steel heat treated to RC 61-6. 60 degree head angle. Centers are designed to hold pipe and hollow work.
Technical Data:
| Selling Unit | EA | |
| Item | Live Center | |
| Type | Bull Nose | |
| Morse Taper | 3 | |
| T.I.R. | 0.0003 | |
| Max Weight of Workpiece | lb | 1210 |
| Maximum Speed | RPM | 3000 |
| Weight | lb | 5 |
| Diameter D | in | 3.93 |
| Minimum Point Diameter A | in | 1.57 |
| Projection Length B | in | 2.64 |
| Head Length C | in | 2.40 |
| Overall Length L | in | 5.83 |
