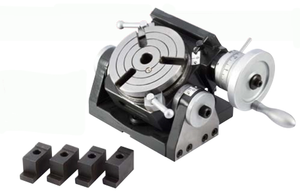

Vertex Universal Tilting Rotary Table 4" - UVT-100
Brand: Vertex Machinery and Tools- SKU:
- UVT-100
- ID:
- 99279
Height | 4.61"Horizontal - 6.97" Vertical |
Center Hole | 2 M.T. |
Center Height | 3.15" Vertical |
T-Slot Size | 0.43" |
Weight | 30 lbs |
$995.00
Vertex Universal Tilting Rotary Table 4" - UVT-100
- Tilting range 0-90 degrees from horizontal to vertical position, it is height rigidity.
- Minimum set-up time has two screws to lock setting. Low profile body for bigger capacity.
- Worm is hardened and ground. The ratio is 90:1 The worktable is graduated a full 360 degrees so that the handle moves the table through 4". Micro collar is graduated in steps of 3" min.
- For arc or index cutting at milling machine, grinding machine or drill machine.
- The tailstock & dividing plates are optional.
- 3 T-Slots.
