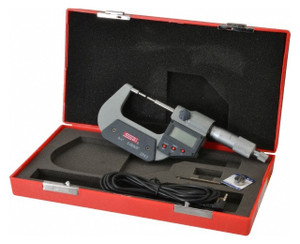

SPI IP65 Electronic Spline Micrometer, 0-1"/0-25mm - 13-832-1
Brand: SPI Swiss Precision Instruments- SKU:
- 13-832-1
- ID:
- 109994
| Range | 0 - 1" / 0 - 25 mm |
| Spindle Diameter | 0.118" / 3 mm |
$402.05
SPI IP65 Electronic Spline Micrometer, 0-1"/0-25mm - 13-832-1
- Carbide measuring faces offered in two different diameters for measuring spline shafts, slots and keyways.
- Standard included in 1-2" range.
- SPC output- cable included.
- Main spindle dia.: 0.250".
- Resolution: 0.00005"/0.001 mm.
- Accuracy: 0.00016"
- Inc./ abs/ inch/ metric measuring.
- Ratchet thimble.
- Spindle lock.
- Certified of calibration traceable to NIST.
- Furnished in fitted case.
1 Inch, Electronic Spline Micrometer
| Type | Spline |
| Measuring Range | 0-1" / 0-25 mm |
| Spindle Diameter | 0.118" / 3 mm |
| Resolution (Inch) | 0.00005" |
| Resolution (mm) | 0.001 mm |
| Thimble Type | Ratchet Stop |
| Accuracy | 0.00016" |
| Display Type | LCD |
| Data Output | Yes |
| Includes | Certificate of Calibration Traceable to NIST |
| SPI Part Number | 13-832-1 |
