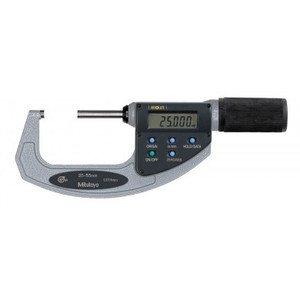

Mitutoyo ABSOLUTE Digimatic Quickmike Micrometer 1-2.2"/25-55mm - 293-677

Brand:   Mitutoyo
SKU:
293-677
ID:
89430
Range 1 - 2.2" / 25 - 55 mm
Resolution 0.00005" / 0.001 mm
Type Standard
callling
$667.00
Current Stock:
Adding to cart… The item has been added

Mitutoyo

Mitutoyo ABSOLUTE Digimatic Quickmike Micrometer 1-2.2"/25-55mm

293-677

An extremely rapid action, water-resistant Mitutoyo digital micrometer that enables measurements to be made many times faster than a standard micrometer. ABSOLUTE System scale for error free, high-speed measurement. The frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement. SPC data output.

293-677

  •   Type Standard
  •   Range 1-2.2"/25-55mm
  •   Actual Range 25.4-55.88mm / 1-2.2"
  •   Resolution 0.001mm / .00005"
  •   Accuracy ±2µm / ±.0001"
  •   Data Output Yes
  •   Display LCD
  •   Flatness 0.3µm / .000012"
  •   Measuring Faces Carbide
  •   Parallelism 2µm / .00008"
  •   Protection IP54
  •   Battery SR44
  •   Battery Life Approx. 1.2 years under normal use
  •   Functions Origin-set, Zero-set, Inch/mm, Data Hold, Automatic Power On/Off, Data Output, Low Voltage alarm, Counting Value Composition Error alarm
  • Non-rotating spindle and the new ratchet friction thimble.
  • Speedy spindle feed of 10mm/rev.
  • ABSOLUTE System linear scale.
  • IP54 dust/water protection (when not connected with data output cable).
  • SPC data output.
