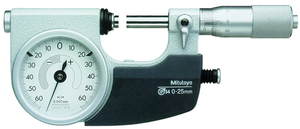

Mitutoyo Indicating Micrometer w/ Button Right, 0-25mm - 510-121

Brand:   Mitutoyo
SKU:
510-121
ID:
384576
Range 0 - 25 mm
callling
$962.00
Current Stock:
Adding to cart… The item has been added

Mitutoyo

Mitutoyo  Indicating Micrometer w/ Button Right, 0-25mm - 510-121

This is an Indicating Micrometer with a dial comparator that enables you to take fast and highly accurate measurements. It offers you the following benefits:

  • It is easy to use when operated one-handed due to retractable anvil.
  • Protection level IP54 and large and easy to read characters on the dial plate
  • Large dial comparator for easy reading (+/- 0,06 mm)
  • Tolerance markers for GO/NG measurements
  • 8 mm spindle diameter gives you easy positioning and highly accurate measurements.

Specifications

Range 0 - 25 mm
Anvil retracting stroke 2 mm
Flatness 0,3 μm
Indicating range ±0.06 mm
Delivered Including box, key
Operating button Right
Mass 520 g
Graduation dial comparator 0.001 mm
Accuracy micrometer 2 µm
Accuracy dial comparator 1 μm
Measuring surfaces Carbide-tipped, micro-lap finish, ø8 mm
Graduation 0,001 mm
Digital/Analog Analog
Inch-Metric Metric
Scale Thimble and sleeve satin chrome finish, ø21 mm
Parallelism 0,6 μm
Measuring spindle With spindle lock, ø8 mm, spindle pitch 0,5 mm
D 25 mm
L 31.5 mm
