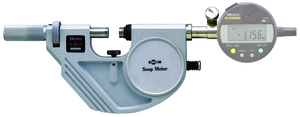

Mitutoyo Snap Meter 50-75mm - 523-143
Features
This Snap Gauge designed to mount an indicator to suit the measurement application, and offers the following benefits:
- It‘s ideal for rapidly inspecting workpieces, especially cylindrical, in batch or mass production situations, when you need an indication of where a measurement falls within the tolerance band.
- You can set it with external length standards such as block gauges.
- Easy-to-operate retracting button.
Specifications
| Range | 50 - 75 mm |
| Anvil retracting stroke | 2 mm |
| Flatness | 0,3 μm |
| Delivered | Including box, workpiece rest, without indicator |
| Mass | 920 g |
| Measuring surfaces | Carbide-tipped, micro-lap finish ø10.8 mm |
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| Parallelism | 1 μm |
| Measuring spindle | ø10,8 mm |
| D | 35 mm |
| L | 56 mm |
