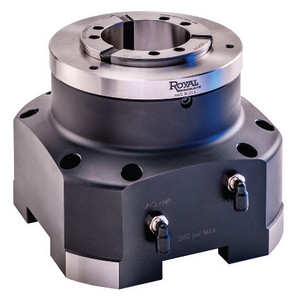

Royal Quick-Grip Power-Block Hydraulic Collet Fixture QG-80 - 43954


Features:

  • Royal Power-Block™ Collet Fixtures bring the full functionality of our Quick-Grip™ CNC Collet Chucks to your vertical and horizontal machining centers.

  • These fixtures incorporate many of the same great features as our Quick-Grip™ CNC Collet Chucks, including ten-second collet changes and the use of parallel-grip collets with a full .062" clamping range.

  • A great alternative to traditional vises and fixtures – especially for long, thin parts, or those with asymmetrical external features.

  • Units are designed to be actuated via hydraulic pressure, and may also be actuated pneumatically for lighter-duty applications.

  • Engineered for use in both stationary and rotary-table applications. Caution! – not for use on lathes or grinders above 60 rpm!

  • Heavy-duty all steel construction with a large double-acting piston for high clamping force.

  • Configured with both side and bottom ports for plumbing flexibility.

  • Multiple units can be plumbed in series for single-source actuation.

  • Mounting face is precision-ground for perpendicularity to centerline.

  • Ideal for high-production vertical and horizontal milling applications.

  • For use with Royal Quick-Grip™ collets.


Click to View More Information


Specifications:

Item Number Model Max Input Hydraulic
Pressure (PSI)
Max Axial
Force (lbs.)
Max Clamping
Force (lbs.)
43954 QG-80 580 11240 25850


Item Number Model Capacity A
(Square)
B
(Outer Dia.)
C D E
Round Square
43954 QG-80 3.28 2.03 7.34 8.46 6.3 5.12 3.00



See all Royal Quick-Grip Power-Block Hydraulic Collet Fixtures
