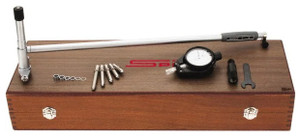

SPI Dial Bore Gage, 0.0001" Graduation, 6.00 - 10.00" Range - 21-345-4
Brand: SPI Swiss Precision Instruments- SKU:
- 21-345-4
- ID:
- 347342
| Graduation | 0.0001" |
| Range | 6.00 - 10.00" |
| Probe Depth | 16" |
| Accuracy | ±0.0003" |
| Anvils | 6 |
| Spacers | 6 |
| Sub-Anvils | 1 |
$500.44
SPI Dial Bore Gage - 21-345-4
0.0001" Graduation
6.00 - 10.00" Range
Features:
- Close tolerance inspection of bores for size, roundness, ovality, and taper.
- AGD group 2 dial indicator is fully protected by rugged cover to minimize potential shock in the machine shop environment.
- Includes anvils, spacers and sub-anvils.
- Short Form Certificate of Calibration included.
- Furnished in fitted case.
- Accessory - 11-367-0 Bore Gage Setting Master sold separately.
- 2 year warranty.
2 Point Measurement:
- 0.24 - 0.4" is with fixed anvils
- 0.4 - 0.7" is with plate guide and fixed anvils
- 0.7 - 1.4" is with canister and fixed anvils
- Over 1.4" is with wheel guide and inserting anvils
Specifications:
| Type | Dial Bore Gage |
| Minimum Measurement | 6.00" |
| Maximum Measurement | 10.00" |
| Gage Depth | 16.000" |
| Graduation | 0.0001" |
| Accuracy | 0.0003" |
| Material | Carbide (Ball) |
| Dial Face Color | White |
| Number of Anvils/Rods | 6 |
| Includes Indicator | Yes |
