Suburban Tool Compound Sine Plate SPC-1218-S2, 18" x 12" x 5-3/8" - 77-077-6

Brand:   Suburban Tool Inc.-Taft Peirce Metrology
SKU:
77-077-6
ID:
128176
Model SPC-1218-S2
SineSet Series S2
Dimensions L x W x H 18" x 12" x 5-3/8"
Weight 278 lbs.
callling
$12,693.00
Current Stock:
Adding to cart… The item has been added

Suburban Tool

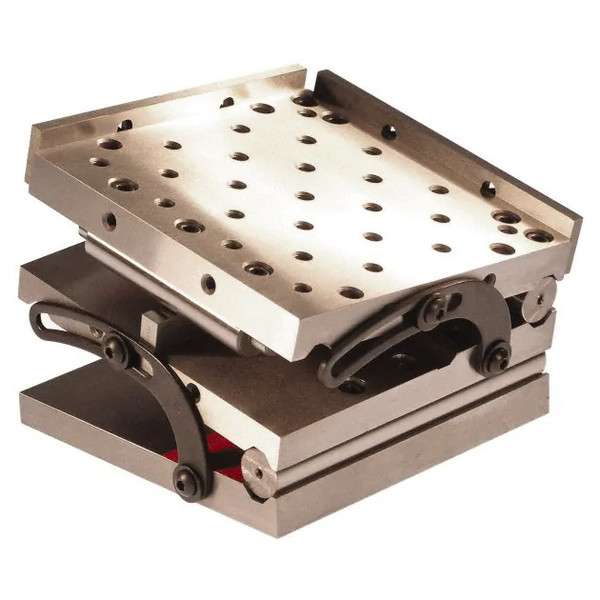

Suburban Tool Compound Sine Plate SPC-1218-S2
18" x 12" x 5-3/8"


18" Long x 12" Wide x 5-3/8" High
Compound Precision Steel Sine Plate

Features:

  • Made of steel, hardened to Rc 58-60.
  • Sizes up to 6" x 6" have 1/4-20 tapped holes. Larger sizes have 3/8-16 tapped holes.
  • Part of the SineSet® System. Other products with the same part # suffix will bolt directly to these compound sine plates
  • Each gage block roll has two 0.200" minute steps for setting small angles with standard gage block sets.
  • Two locking straps that always remains below the top surface and two hardened & ground rails are standard.

Specifications:

MODEL # SineSet
Series
L W H C1 C2 SQUARE &
PARALLEL
WT
SPC-1218-S2 S2 18" 12" 5-3/8" 15" ±0.0003" 10" ±0.0003" 0.0004" 278



Precision Yes
Compound Yes
Length (Inch) 18
Width (Inch) 12
Height (Inch) 5-3/8
Sine Series S2
Material Steel
Hole Size 3/8-16
Roll Centerline Distance (Inch) 10 (C2); 15 (C1)
Parallelism (Decimal Inch) 0.0004
Squareness (Decimal Inch) 0.0004
Tolerance (Decimal Inch) 0.0003 (C1); 0.0003 (C2)
Minute Angle Step (Decimal Inch) 0.2000



See all Suburban Tool Compound Sine Plates
