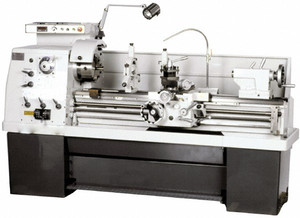

Vectrax 14" x 40" Toolroom Lathe: Variable Speed Pulley, 5 hp, 220 V 3 Phase, 52.50 mm Spindle Bore Dia, 20 to 2,500 RPM FC-1660V - 97042386
Brand: Vectrax- SKU:
- 97042386
- ID:
- 873508
$92,553.68
Vectrax 14" x 40" Toolroom Lathe: Variable Speed Pulley, 5 hp, 220 V 3 Phase, 52.50 mm Spindle Bore Dia, 20 to 2,500 RPM
Manufacturer Part #: FC-1660V
S/N: 97042386
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Phase | Three |
| Spindle Speed Control | Variable Speed Pulley |
| Bed Width | 260.0mm |
| Distance Between Centers (Inch) | 40 |
| Distance Between Centers | 40in |
| Cross Slide Travel | 220.0mm |
| Gap Length | 135.0mm |
| Swing | 14in |
| Spindle Bore Diameter | 52.5mm |
| Swing (Inch) | 14 |
| Minimum Spindle Speed | 20 |
| Spindle Nose Designation | D1-6 |
| Maximum Spindle Speed | 2500 |
| Overall Height | 59in |
| Overall Depth | 960.0mm |
| Number of Inch Threads | 45 |
| Spindle Taper Size (Sleeve) | 4MT |
| Spindle Taper Size | 6MT |
| Tailstock Taper Size | 4MT |
| Tailstock Travel (Decimal Inch) | 6.0000 |
| Tailstock Travel | 152.0mm, 6.0in |
| Maximum Threads Per Inch | 72 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0020 |
| Overall Length (Inch) | 81 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0670 |
| Maximum Longitudinal Feed Per Revolution | 1.7mm, 0.067in |
| Minimum Cross Feed Rate Per Revolution | 0.001in |
| Min. Cross Feed Rate Per Revolution (Decimal Inch) | 0.001000 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch) | 0.8500 |
| Maximum Cross Feed Rate Per Revolution | 5.0mm, 0.85in |
| Swing Over Gap | 533.0mm |
