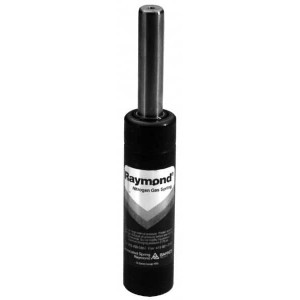

Associated Spring Raymond 19mm Diam, 25mm Max Stroke, Green Nitrogen Gas Spring Cylinder 65mm Body Length, 92mm OAL, 94 Lb Full Stroke Spring Force, 725 psi Initial Charge R19-025 GR - 00015396
Brand: Associated Spring Raymond- SKU:
- 00015396
- ID:
- 585642
$119.48
Associated Spring Raymond 19mm Diam, 25mm Max Stroke, Green Nitrogen Gas Spring Cylinder 65mm Body Length, 92mm OAL, 94 Lb Full Stroke Spring Force, 725 psi Initial Charge
Manufacturer Part #: R19-025 GR
S/N: 00015396
UNSPSC: 25172000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Diameter (Decimal Inch) | 0.7480 |
| Diameter (mm) | 19.00 |
| Stroke Length (Decimal Inch) | 0.9800 |
| Stroke Length (mm) | 25.00 |
| Maximum Stroke | 25.00 |
| Initial Charge Pressure (psi) | 725 |
| Overall Length (Decimal Inch) | 3.6200 |
| Overall Length (mm) | 92.00 |
| Color | Green |
| Rod Diameter (mm) | 8.00 |
| Rod Diameter (Decimal Inch) | 0.3150 |
| Mounting Hole Thread Size | M6 |
| Body Length | 65.00 |
| Spring Force Initial (lbf) | 67 |
| Spring Force Full Stroke (lbf) | 94 |
| Maximum Stroke (Decimal Inch) | 0.9800 |
| Body Length (Decimal Inch) | 2.5600 |
| Maximum Operating Temperature C | 80 |
| Maximum Operating Temperature F | 176 |
| Minimum Operating Temperature F | 0 |
| Minimum Operating Temperature C | 0 |
