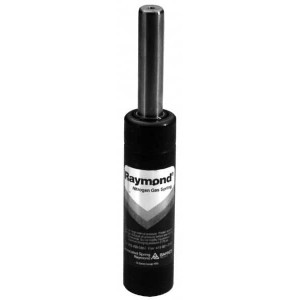

Associated Spring Raymond 19mm Diam, 80mm Max Stroke, Red Nitrogen Gas Spring Cylinder 123mm Body Length, 205mm OAL, 214 Lb Full Stroke Spring Force, 2,030 psi Initial Charge R19-080 RE - 00015545
Brand: Associated Spring Raymond- SKU:
- 00015545
- ID:
- 585670
$148.51
Associated Spring Raymond 19mm Diam, 80mm Max Stroke, Red Nitrogen Gas Spring Cylinder 123mm Body Length, 205mm OAL, 214 Lb Full Stroke Spring Force, 2,030 psi Initial Charge
Manufacturer Part #: R19-080 RE
S/N: 00015545
UNSPSC: 25172000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Diameter (Decimal Inch) | 0.7480 |
| Diameter (mm) | 19.00 |
| Stroke Length (Decimal Inch) | 3.1500 |
| Stroke Length (mm) | 80.00 |
| Maximum Stroke | 80.00 |
| Initial Charge Pressure (psi) | 2030 |
| Overall Length (Decimal Inch) | 8.0700 |
| Overall Length (mm) | 205.00 |
| Color | Red |
| Rod Diameter (mm) | 8.00 |
| Rod Diameter (Decimal Inch) | 0.3150 |
| Mounting Hole Thread Size | M6 |
| Body Length | 123.00 |
| Spring Force Initial (lbf) | 157 |
| Spring Force Full Stroke (lbf) | 214 |
| Maximum Stroke (Decimal Inch) | 3.1500 |
| Body Length (Decimal Inch) | 4.8400 |
| Maximum Operating Temperature C | 80 |
| Maximum Operating Temperature F | 176 |
| Minimum Operating Temperature F | 0 |
| Minimum Operating Temperature C | 0 |
