Gardner Spring 90° Deflection Angle, 0.56" OD, 1/16" Wire Diam, 4-1/4 Coils, Torsion Spring 0.343" Max Tool Size, 5.518 In/Lb Torque at Leg Length GT6334309-ML - 00043398

Gardner Spring 90° Deflection Angle, 0.56" OD, 1/16" Wire Diam, 4-1/4 Coils, Torsion Spring 0.343" Max Tool Size, 5.518 In/Lb Torque at Leg Length GT6334309-ML - 00043398

Brand:   Gardner Spring
SKU:
00043398
ID:
585770
callling
$8.55
Current Stock:
Adding to cart… The item has been added

Gardner Spring

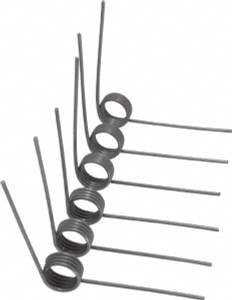

Gardner Spring 90° Deflection Angle, 0.56" OD, 1/16" Wire Diam, 4-1/4 Coils, Torsion Spring 0.343" Max Tool Size, 5.518 In/Lb Torque at Leg Length

Manufacturer Part #: GT6334309-ML

S/N: 00043398

UNSPSC: 31161908

(Minimum Order Quantity=1, Package Quantity=6)

Specifications:

Rod Size0.343in, 8.71mm
Maximum Tool Size0.343
Coil Outside Diameter0.560
Wire Diameter0.06300
Leg Length2.000
Deflection Angle90
Direction Of WindLeft Hand
MaterialSteel
Number of Coils4.25
Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.
