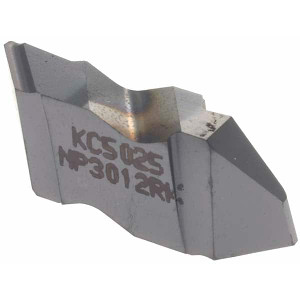

Kennametal NP3012RK KC5025 Carbide Grooving Insert TiAlN Finish, RH, 4.83mm Cutting Width, 5.08mm Max Depth, Series Top Notch 1818439 - 00149443

Kennametal NP3012RK KC5025 Carbide Grooving Insert TiAlN Finish, RH, 4.83mm Cutting Width, 5.08mm Max Depth, Series Top Notch 1818439 - 00149443

Brand:   Kennametal
SKU:
00149443
ID:
649497
callling
$43.96
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal NP3012RK KC5025 Carbide Grooving Insert TiAlN Finish, RH, 4.83mm Cutting Width, 5.08mm Max Depth, Series Top Notch

Manufacturer Part #: 1818439

S/N: 00149443

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleNP
Cutting Width (Decimal Inch)0.1902
Cutting Width (mm)4.83
Insert HandRight Hand
Maximum Depth of Cut (Decimal Inch)0.2000
Maximum Depth of Cut (mm)5.08
Insert MaterialCarbide
Manufacturer GradeKC5025
Full RadiusNo
Corner Radius (Decimal Inch)0.0135
Corner Radius (mm)0.34
RakePositive
Insert Size3012
Material GradeC2, C6
Maximum Depth Of Cut Range (Decimal Inch)0.2000 to 0.3000
Maximum Depth Of Cut Range (mm)5.00 to 10.00
Lead Angle3
Multi-use ToolNo
SeriesTop Notch
Coating ProcessPVD
Rake Angle10
UNSPSC Code23242105
Chip BreakerK
MSC/Manufacturer NumberNP3012RK
Insert Height (Decimal Inch)0.3440
Included Angle Degree55
Coating/FinishTiAlN
