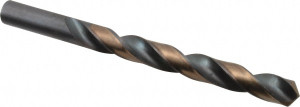

Michigan Drill 15/32" 118° High Speed Steel Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 5-3/4" OAL, Split Point 314 15/32 - 00371773
Brand: Michigan Drill- SKU:
- 00371773
- ID:
- 724821
$19.28
Michigan Drill 15/32" 118° High Speed Steel Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 5-3/4" OAL, Split Point
Manufacturer Part #: 314 15/32
S/N: 00371773
UNSPSC: 23241634
UPC: 728012141336
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 15/32 |
| Drill Bit Size (Decimal Inch) | 0.4688 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Oxide, Gold, Black Oxide |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 4-5/16 |
| Shank Diameter (Decimal Inch) | 0.4688 |
| Overall Length (Inch) | 5-3/4in |
| Overall Length (Decimal Inch) | 5.7500in |
| Spiral Type | Regular |
| Flute Length (Decimal Inch) | 4.3125 |
| Series | 314 |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 9xD |
| Shank Diameter (Inch) | 15/32in |
| Maximum Drilling Depth (Decimal Inch) | 4.3125 |
| Maximum Drilling Depth (Inch) | 4-5/16 |
| Shank Length (Decimal Inch) | 1.4375in |
| Shank Length (Inch) | 1-7/16in |
| Number of Flats | 0 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Standards | ANSI |
| Double Margin | Yes |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Specification Designation | ANSI |
| UNSPSC Code | 23241634 |
