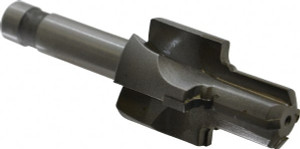

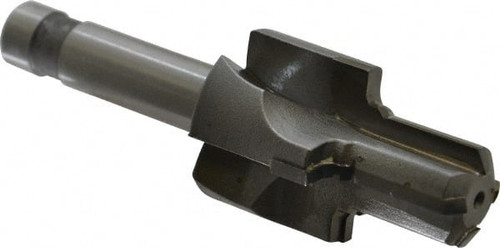

Made in USA 3/4-16" Port, 1.24" Spotface Dia, 1/2" Tube Outside Dia, Reamer Pilot, Straight Shank, Carbide Tip Porting Tool 0.687" Min Pilot Dia (AND Spec), 0.693" Min Pilot Dia (MS Spec), 3-15/16" OAL, 4 Flute, AND 10050, MS 33649 49R-8 - 00390120
Brand: Made in USA- SKU:
- 00390120
- ID:
- 697680
$400.17
Made in USA 3/4-16" Port, 1.24" Spotface Diam, 1/2" Tube Outside Diam, Reamer Pilot, Straight Shank, Carbide Tipped Porting Tool 0.687" Min Pilot Diam (AND Spec), 0.693" Min Pilot Diam (MS Spec), 3-15/16" OAL, 4 Flute, AND 10050, MS 33649
Manufacturer Part #: 49R-8
S/N: 00390120
UNSPSC: 23241603
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Spotface Diameter (Decimal Inch) | 1.2400 |
| Tube Outside Diameter Compatibility (Inch) | 1/2 |
| Pilot Type | Reamer |
| Port Thread Size (Decimal Inch) | 3/4-16 |
| Minimum Pilot Diameter (Decimal Inch) | 0.6870 |
| Overall Length (Inch) | 3-15/16 |
| Number Of Flutes | 4 |
| Standards | 0.686, 0.692, AND 10050, MS 33649 |
| Shank Type | Straight |
| Identification Groove | No |
| Thread Type | Straight |
| Shank Diameter (Inch) | 1/2 |
| Military Specification | 0.692 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | Bright |
| AND Specification | 0.686 |
