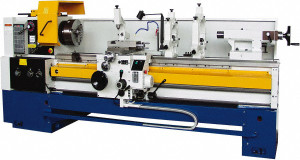

Summit Machine Tool 20-1/4" x 80" Engine Lathe: Geared Head, 10 hp, 220/440 V 3 Phase, 4-1/8" Spindle Bore Dia, 11 to 1,400 RPM 20-4X80B - 00410787
Brand: Summit Machine Tool- SKU:
- 00410787
- ID:
- 873489
$93,885.92
Summit Machine Tool 20-1/4" x 80" Engine Lathe: Geared Head, 10 hp, 220/440 V 3 Phase, 4-1/8" Spindle Bore Dia, 11 to 1,400 RPM
Manufacturer Part #: 20-4X80B
S/N: 00410787
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Phase | Three |
| Spindle Speed Control | Geared Head |
| Bed Width (Inch) | 15.7480 |
| Bed Width | 400mm, 15.748in |
| Distance Between Centers (Inch) | 80 |
| Distance Between Centers | 80in |
| Cross Slide Travel | 288.93mm, 11.375in |
| Gap Length (Decimal Inch) | 15.0000 |
| Gap Length | 381mm, 15in |
| Cross Slide Travel (Inch) | 11-3/8 |
| Cross Slide Travel (Decimal Inch) | 11.3750 |
| Swing (Inch) | 20-1/4 |
| Spindle Bore Diameter (Inch) | 4-1/8 |
| Minimum Spindle Speed | 11 |
| Spindle Nose Designation | D1-8 |
| Maximum Spindle Speed | 1400 |
| Overall Height | 52in |
| Overall Depth | 48in |
| Minimum Metric Pitch (Decimal Inch) | 0.0197 |
| Number of Inch Threads | 64 |
| Minimum Metric Pitch | 0.0197in |
| Spindle Taper Size | 6MT |
| Tailstock Taper Size | 5MT |
| Tailstock Travel (Decimal Inch) | 9.5000 |
| Tailstock Travel | 241.3mm, 9.5in |
| Maximum Threads Per Inch | 60 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0015 |
| Overall Depth (Inch) | 48 |
| Overall Length (Inch) | 141 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.4447 |
| Maximum Longitudinal Feed Per Revolution | 0.4447in |
| Minimum Cross Feed Rate Per Revolution | 0.0007in |
| Min. Cross Feed Rate Per Revolution (Decimal Inch) | 0.000700 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch) | 0.2224 |
| Maximum Cross Feed Rate Per Revolution | 0.2224in |
| Swing Over Cross Slide (Decimal Inch) | 11.8750 |
| Swing Over Cross Slide (Inch) | 11-7/8 |
| Swing Over Gap (Inch) | 27-5/8 |
| Swing Over Gap (Decimal Inch) | 27.6250 |
| Swing Over Gap | 701.68mm, 27.625in |
