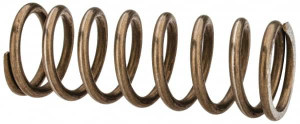

Gardner Spring 0.36" OD 1" Free Length Precision Compression Spring 21 Lb Spring Rating, 0.042" Wire, 13 Lb Max Workload, 0.379" Solid Height, Stainless Steel 36422GS - 00603308
Brand: Gardner Spring- SKU:
- 00603308
- ID:
- 583566
$3.67
Gardner Spring 0.36" OD 1" Free Length Precision Compression Spring 21 Lb Spring Rating, 0.042" Wire, 13 Lb Max Workload, 0.379" Solid Height, Stainless Steel
Manufacturer Part #: 36422GS
S/N: 00603308
UNSPSC: 31161904
(Minimum Order Quantity=1, Package Quantity=5)
Specifications:
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.3600in |
| Free Length (Inch) | 1in |
| Spring Rate | 18.2600in.lb |
| End Type | Closed, Ground |
| Maximum Work Load (N) | 52.19 |
| Maximum Work Load (Lb.) | 13.0000 |
| Material | Stainless Steel |
| Finish | Plain |
| Wire Size (Decimal Inch) | 0.0421 |
| Hole Diameter (Decimal Inch) | 0.3750 |
| Spring Type | Precision |
| Solid Height (Decimal Inch) | 0.3790 |
| Free Length (Decimal Inch) | 1.0000 |
| Color | Silver |
| Standards | AISI 302, ASTM A228, ASTM A313 |
| Hole Diameter (Inch) | 3/8in |
| UNSPSC Code | 31161904 |
