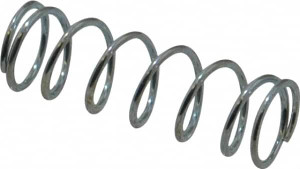

Gardner Spring 0.24" OD 3/4" Free Length Precision Compression Spring 5.5 Lb Spring Rating, 0.022" Wire, 3 Lb Max Workload, 0.188" Solid Height, Music Wire 36293G - 00612879
Brand: Gardner Spring- SKU:
- 00612879
- ID:
- 583416
$3.33
Gardner Spring 0.24" OD 3/4" Free Length Precision Compression Spring 5.5 Lb Spring Rating, 0.022" Wire, 3 Lb Max Workload, 0.188" Solid Height, Music Wire
Manufacturer Part #: 36293G
S/N: 00612879
UNSPSC: 31161904
(Minimum Order Quantity=1, Package Quantity=5)
Specifications:
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.2400in |
| Free Length (Inch) | 3/4in |
| Spring Rate | 5.5000in.lb |
| End Type | Closed, Ground |
| Maximum Work Load (N) | 14.46 |
| Maximum Work Load (Lb.) | 3.0000 |
| Material | Music Wire |
| Finish | Plain |
| Wire Size (Decimal Inch) | 0.0220 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Spring Type | Precision |
| Solid Height (Decimal Inch) | 0.1880 |
| Color | Silver |
| Standards | AISI 302, ASTM A228, ASTM A313 |
| Hole Diameter (Inch) | 1/4in |
| UNSPSC Code | 31161904 |
