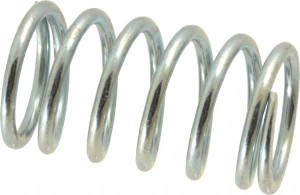

Gardner Spring 0.845" OD 1-1/2" Free Length Precision Compression Spring 49 Lb Spring Rating, 0.091" Wire, 41 Lb Max Workload, 0.647" Solid Height, Music Wire 36596G - 00613885

Gardner Spring 0.845" OD 1-1/2" Free Length Precision Compression Spring 49 Lb Spring Rating, 0.091" Wire, 41 Lb Max Workload, 0.647" Solid Height, Music Wire 36596G - 00613885

Brand:   Gardner Spring
SKU:
00613885
ID:
583625
callling
$5.20
Current Stock:
Adding to cart… The item has been added

Gardner Spring

Gardner Spring 0.845" OD 1-1/2" Free Length Precision Compression Spring 49 Lb Spring Rating, 0.091" Wire, 41 Lb Max Workload, 0.647" Solid Height, Music Wire

Manufacturer Part #: 36596G

S/N: 00613885

UNSPSC: 31161904

(Minimum Order Quantity=1, Package Quantity=5)

Specifications:

Outside Diameter (Decimal Inch - 4 Decimals)0.8450in
Free Length (Inch)1-1/2in
Spring Rate49.0000in.lb
End TypeClosed, Ground
Maximum Work Load (N)186.83
Maximum Work Load (Lb.)41.0000
MaterialMusic Wire
FinishPlain
Wire Size (Decimal Inch)0.0909
Hole Diameter (Decimal Inch)0.8750
Spring TypePrecision
Solid Height (Decimal Inch)0.8740
ColorSilver
StandardsAISI 302, ASTM A228, ASTM A313
Hole Diameter (Inch)7/8in
UNSPSC Code31161904
