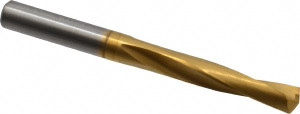

M.A. Ford 6.49986mm 135° Spiral Flute Solid Carbide Screw Machine Drill Bit TiN Finish, Right Hand Cut, 36.5mm Flute Length, 67mm OAL, Split Point, Straight Shank 20525590T - 00657965
Brand: M.A. Ford- SKU:
- 00657965
- ID:
- 738254
$81.67
M.A. Ford 6.49986mm 135° Spiral Flute Solid Carbide Screw Machine Drill Bit TiN Finish, Right Hand Cut, 36.5mm Flute Length, 67mm OAL, Split Point, Straight Shank
Manufacturer Part #: 20525590T
S/N: 00657965
UNSPSC: 23241635
UPC: 697604255211
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 6.50 |
| Drill Bit Size (Decimal Inch) | 0.2559 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Number Of Flutes | 2 |
| Spiral Type | Slow |
| Flute Type | Spiral |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Point Type | Split |
| Primary Workpiece Material | Cast Iron, Non-Ferrous Metal, Stainless Steel, Steel |
| Shank Diameter (Decimal Inch) | 0.2559 |
| Overall Length (mm) | 67.00 |
| Overall Length (Decimal Inch) | 2.6378 |
| Series | 205 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Screw Machine |
| Shank Length (Decimal Inch) | 1.2008 |
| Shank Length (mm) | 30.50 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in, +0.000 to -0.013 mm |
| Flute Length (mm) | 36.50 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Drill Bit Size Range (mm) | 6.50 to 8.00 |
