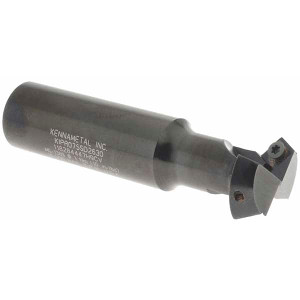

Kennametal 30° Lead Angle, 3/4" to 1.077" Cut Diam, Indexable & Chamfer End Mill Takes 2 Inserts, SDEB 26152 Insert Style, KIPR Toolholder, 3-1/4" OAL, 0.26" Max Depth of Cut 1023674 - 00691550
Brand: Kennametal- SKU:
- 00691550
- ID:
- 679864
$569.59
Kennametal 30° Lead Angle, 3/4" to 1.077" Cut Diam, Indexable & Chamfer End Mill Takes 2 Inserts, SDEB 26152 Insert Style, KIPR Toolholder, 3-1/4" OAL, 0.26" Max Depth of Cut
Manufacturer Part #: 1023674
S/N: 00691550
UNSPSC: 23291600
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Cutting Diameter (Inch) | 3/4 |
| Minimum Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0770 |
| Maximum Depth of Cut (Decimal Inch) | 0.2600 |
| Maximum Depth of Cut (mm) | 6.60 |
| Shank Diameter (mm) | 19.05 |
| Number Of Cutter Inserts | 2 |
| Insert Style | SDEB 26152 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.2500 |
| Toolholder Style | KIPR |
| Maximum RPM | 10500 |
| Head Length (Decimal Inch) | 1.2200 |
| Shank Length (Decimal Inch) | 2.0299 |
| Shank Length (mm) | 51.56 |
| Number Of Flutes | 2 |
| Coolant Through | No |
| Shank Type | Weldon Flat |
