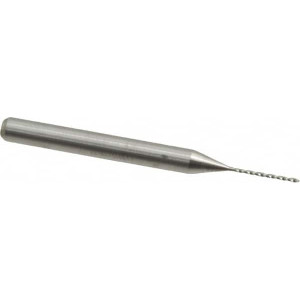

KYOCERA SGS #74, 130° Drill Point, 1/8" Shank Diam, Regular Spiral Circuit Board Drill Bit 8.64mm Flute Length, 1-1/2" OAL, Series 105 07296 - 00902742
Brand: KYOCERA SGS- SKU:
- 00902742
- ID:
- 699562
$4.56
KYOCERA SGS #74, 130° Drill Point, 1/8" Shank Diam, Regular Spiral Circuit Board Drill Bit 8.64mm Flute Length, 1-1/2" OAL, Series 105
Manufacturer Part #: 07296
S/N: 00902742
UNSPSC: 23241600
UPC: 691781072968
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #74 |
| Drill Bit Size (Decimal Inch) | 0.0225 |
| Drill Bit Size (mm) | 0.57 |
| Drill Point Angle | 130 |
| Tool Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (mm) | 3.18 |
| Flute Length (mm) | 8.64 |
| Flute Length (Decimal Inch) | 0.3400 |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1-1/2 |
| Spiral Type | Regular |
| Point Type | Four Facet |
| Series | 105 |
| Web Configuration | Tapered |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0003 to +0.0000 |
| Primary Workpiece Material | Alloy, Titanium |
| Primary Workpiece Material Code | K, M, N, P, S |
| Number Of Flutes | 2 |
| Material Application | Aluminum, Cast Iron, Cobalt Alloy, Copper Alloy, Fiber-Reinforced Polymers, Nickel, Plastics, Stainless Steel, Titanium |
| Coating/Finish | Uncoated |
