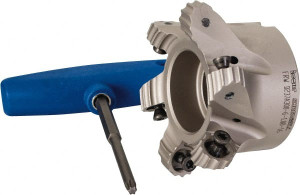

Iscar 2.37" Cut Diam, 0.315" Max Depth, 1" Arbor Hole, 1-3/4" High, Indexable Copy Face Mill Takes 6 Inserts, RC 1607 Insert Style, FRW Toolholder Style, Series MillShred 3103462 - 01201565

Iscar 2.37" Cut Diam, 0.315" Max Depth, 1" Arbor Hole, 1-3/4" High, Indexable Copy Face Mill Takes 6 Inserts, RC 1607 Insert Style, FRW Toolholder Style, Series MillShred 3103462 - 01201565

Brand:   Iscar
SKU:
01201565
ID:
680577
callling
$1,585.45
Current Stock:
Adding to cart… The item has been added

Iscar

Iscar 2.37" Cut Diam, 0.315" Max Depth, 1" Arbor Hole, 1-3/4" High, Indexable Copy Face Mill Takes 6 Inserts, RC 1607 Insert Style, FRW Toolholder Style, Series MillShred

Manufacturer Part #: 3103462

S/N: 01201565

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Cutting Diameter (Decimal Inch)2.3700
Minimum Cutting Diameter (Decimal Inch)2.3700
Maximum Cutting Diameter (Decimal Inch)3.0000
Maximum Depth of Cut (Decimal Inch)0.3150
Arbor Hole Diameter (Decimal Inch)1.0000
Compatible Insert Size CodeRC 1607
Maximum Ramping Angle5.00degree
Cutter StyleFRW
Insert Holding MethodScrew
SeriesMillShred
Hub Diameter (Decimal Inch)2.1260
Overall Height (Decimal Inch)1.7500
StandardsISO
Insert Inscribed Circle (Decimal Inch)0.6300
Complete Insert CompatibilityRCMT/RCCT-MO, RCMT/RCMW/RCCW-FW, RCMW/RCCW-MO
Number Of Cutter Inserts6
Coolant ThroughNo
