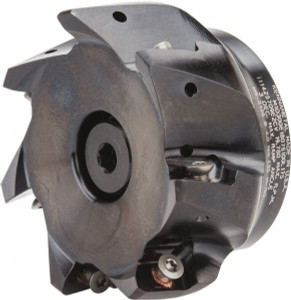

Kennametal 3" Cut Diam, 1" Arbor Hole Diam, 18.03mm Max Depth, Indexable Square-Shoulder Face Mill Takes 7 Inserts, 0/90° Lead Angle, 1-3/4" High, EC18, EP18 Insert Style, Through Coolant, Series Mill 1-18 2267643 - 01230747
Brand: Kennametal- SKU:
- 01230747
- ID:
- 680770
$1,156.05
Kennametal 3" Cut Diam, 1" Arbor Hole Diam, 18.03mm Max Depth, Indexable Square-Shoulder Face Mill Takes 7 Inserts, 0/90° Lead Angle, 1-3/4" High, EC18, EP18 Insert Style, Through Coolant, Series Mill 1-18
Manufacturer Part #: 2267643
S/N: 01230747
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Maximum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Cutting Diameter (mm) | 76.20 |
| Maximum Depth of Cut (mm) | 18.03 |
| Maximum Depth of Cut (Decimal Inch) | 0.7100 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | EC18.., EP18.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 0/90 |
| Series | Mill 1-18 |
| Maximum Body Diameter (Decimal Inch) | 2.9070 |
| Overall Height (Mm - 5 Decimals) | 44.45 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Keyway Width (mm) | 9.91 |
| Keyway Width (Decimal Inch) | 0.3902 |
| Hub Diameter (mm) | 55.58 |
| Hub Diameter (Decimal Inch) | 2.1882 |
| Coolant Hole Diameter (Decimal Inch) | 3.0000 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 7 |
| Number Of Flutes | 7 |
