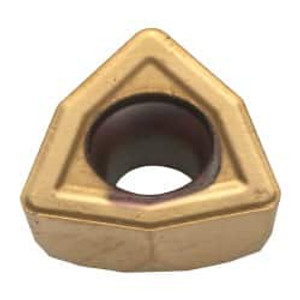

Kennametal DFT05T308HP KC7140 Carbide Indexable Drill Insert TiN/TiCN Finish, 8mm Inscribed Circle, 3.75mm Thick, 0.8mm Corner Radius, 84° Trigon 1804829 - 01277862

Kennametal DFT05T308HP KC7140 Carbide Indexable Drill Insert TiN/TiCN Finish, 8mm Inscribed Circle, 3.75mm Thick, 0.8mm Corner Radius, 84° Trigon 1804829 - 01277862

Brand:   Kennametal
SKU:
01277862
ID:
655792
callling
$31.12
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal DFT05T308HP KC7140 Carbide Indexable Drill Insert TiN/TiCN Finish, 8mm Inscribed Circle, 3.75mm Thick, 0.8mm Corner Radius, 84° Trigon

Manufacturer Part #: 1804829

S/N: 01277862

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleDFT
Insert MaterialSolid Carbide
Manufacturer GradeKC7140
Inscribed Circle (Decimal Inch)0.3150
Inscribed Circle (mm)8.00
Corner Radius (Decimal Inch)0.0315
Corner Radius (mm)0.80
ChipbreakerHP
Material GradeC5, C6
Coating ProcessPVD
ShapeTrigon
Hole Diameter (Decimal Inch)0.1378
Hole Diameter (Mm) ( - 0 Decimals)3.50
Relief Angle8
Insert Size05T308
Length (Mm)5.29
Length (Decimal Inch - 4 Decimals)0.2083
Included Angle Degree84
Thickness (Decimal Inch - 4 Decimals)0.1476
Coating/FinishTiN, TiCN
