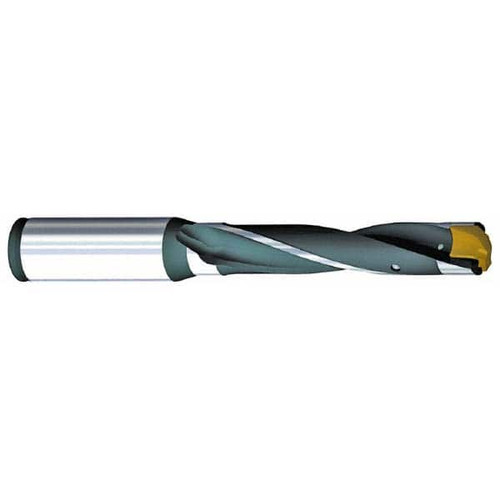

Kennametal 23.42 to 23.92mm, 5xD, 119.89mm Max Depth, 1" Shank Diam, 148.34mm Flute, 228.6mm OAL, Replaceable-Tip Drill Uses KSEM0922 Inserts, Seat Size 4, Series KSEM 1606888 - 01293091
Brand: Kennametal- SKU:
- 01293091
- ID:
- 645562
$816.92
Kennametal 23.42 to 23.92mm, 5xD, 119.89mm Max Depth, 1" Shank Diam, 148.34mm Flute, 228.6mm OAL, Replaceable-Tip Drill Uses KSEM0922 Inserts, Seat Size 4, Series KSEM
Manufacturer Part #: 1606888
S/N: 01293091
UNSPSC: 23291502
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Drill Diameter (Decimal Inch) | 0.9220 |
| Minimum Drill Diameter (mm) | 23.42 |
| Maximum Drill Diameter (mm) | 23.92 |
| Maximum Drill Diameter (Decimal Inch) | 0.9417 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 119.89 |
| Maximum Drill Depth (Decimal Inch) | 4.7200 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 4 |
| Shank Diameter (mm) | 25.40mm |
| Maximum Drill Depth Range (Decimal Inch) | 4.5000 to 6.0000 |
| Maximum Drill Depth Range (mm) | 100.00 to 125.00 |
| Compatible Insert Style | KSEM0922 |
| Overall Length (mm) | 228.60mm |
| Overall Length (Decimal Inch) | 9.0000in |
| Series | KSEM |
| Flute Length (mm) | 148.34 |
| Flute Length (Decimal Inch) | 5.8402 |
| Shank Length (Decimal Inch) | 3.0000in |
| Shank Length (mm) | 76.20mm |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
