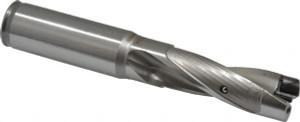

Kennametal 17.46 to 17.96mm, 3xD, 52.39mm Max Depth, 3/4" Shank Diam, 2.72" Flute, 4.88" OAL, Replaceable-Tip Drill Uses KSEM0688 Inserts, Seat Size 1, Series KSEM 2238534 - 01293190
Brand: Kennametal- SKU:
- 01293190
- ID:
- 645470
$593.57
Kennametal 17.46 to 17.96mm, 3xD, 52.39mm Max Depth, 3/4" Shank Diam, 2.72" Flute, 4.88" OAL, Replaceable-Tip Drill Uses KSEM0688 Inserts, Seat Size 1, Series KSEM
Manufacturer Part #: 2238534
S/N: 01293190
UNSPSC: 23291502
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Drill Diameter (Decimal Inch) | 0.6874 |
| Minimum Drill Diameter (mm) | 17.46 |
| Maximum Drill Diameter (mm) | 17.96 |
| Maximum Drill Diameter (Decimal Inch) | 0.7071 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 52.39 |
| Maximum Drill Depth (Decimal Inch) | 2.0600 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 1 |
| Shank Diameter (mm) | 19.05mm |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Compatible Insert Style | KSEM0688 |
| Overall Length (Decimal Inch) | 4.8800in |
| Series | KSEM |
| Flute Length (Decimal Inch) | 2.7200 |
| Shank Length (Decimal Inch) | 2.0000in |
| Shank Length (mm) | 50.80mm |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
