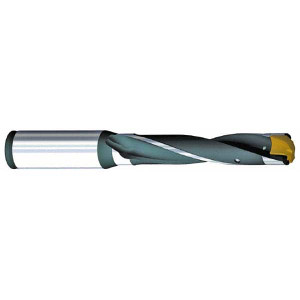

Kennametal 20.24 to 20.74mm, 3xD, 60.72mm Max Depth, 1" Shank Diam, 3.22" Flute, 6.38" OAL, Replaceable-Tip Drill Uses KSEM0797 Inserts, Seat Size 3, Series KSEM 2238543 - 01293349
Brand: Kennametal- SKU:
- 01293349
- ID:
- 645509
$679.13
Kennametal 20.24 to 20.74mm, 3xD, 60.72mm Max Depth, 1" Shank Diam, 3.22" Flute, 6.38" OAL, Replaceable-Tip Drill Uses KSEM0797 Inserts, Seat Size 3, Series KSEM
Manufacturer Part #: 2238543
S/N: 01293349
UNSPSC: 23291502
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Drill Diameter (Decimal Inch) | 0.7969 |
| Minimum Drill Diameter (mm) | 20.24 |
| Maximum Drill Diameter (mm) | 20.74 |
| Maximum Drill Diameter (Decimal Inch) | 0.8165 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 60.72 |
| Maximum Drill Depth (Decimal Inch) | 2.3900 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 3 |
| Shank Diameter (mm) | 25.40mm |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |
| Compatible Insert Style | KSEM0797 |
| Overall Length (Decimal Inch) | 6.3800in |
| Series | KSEM |
| Flute Length (Decimal Inch) | 3.2200 |
| Shank Length (Decimal Inch) | 3.0000in |
| Shank Length (mm) | 76.20mm |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
