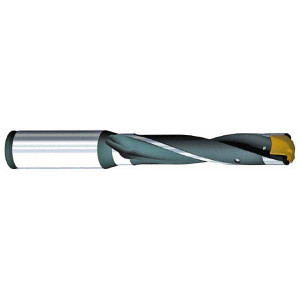

Kennametal 21.44 to 21.93mm, 3xD, 64.3mm Max Depth, 1" Shank Diam, 3.34" Flute, 6-1/2" OAL, Replaceable-Tip Drill Uses KSEM0844 Inserts, Seat Size 3, Series KSEM 2238545 - 01293372
Brand: Kennametal- SKU:
- 01293372
- ID:
- 645510
$679.13
Kennametal 21.44 to 21.93mm, 3xD, 64.3mm Max Depth, 1" Shank Diam, 3.34" Flute, 6-1/2" OAL, Replaceable-Tip Drill Uses KSEM0844 Inserts, Seat Size 3, Series KSEM
Manufacturer Part #: 2238545
S/N: 01293372
UNSPSC: 23291502
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Drill Diameter (Decimal Inch) | 0.8441 |
| Minimum Drill Diameter (mm) | 21.44 |
| Maximum Drill Diameter (mm) | 21.93 |
| Maximum Drill Diameter (Decimal Inch) | 0.8634 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 64.30 |
| Maximum Drill Depth (Decimal Inch) | 2.5300 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 3 |
| Shank Diameter (mm) | 25.40mm |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |
| Compatible Insert Style | KSEM0844 |
| Overall Length (Decimal Inch) | 6.5000in |
| Series | KSEM |
| Flute Length (Decimal Inch) | 3.3400 |
| Shank Length (Decimal Inch) | 3.0000in |
| Shank Length (mm) | 76.20mm |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
