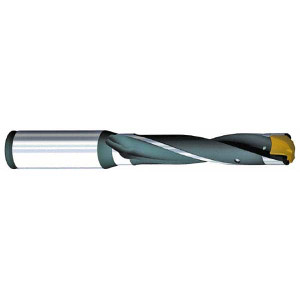

Kennametal 26.99 to 27.49mm, 3xD, 80.96mm Max Depth, 1-1/4" Shank Diam, 4.22" Flute, 7.63" OAL, Replaceable-Tip Drill Uses KSEM1063 Inserts, Seat Size 6, Series KSEM 2238560 - 01293760
Brand: Kennametal- SKU:
- 01293760
- ID:
- 645552
$802.74
Kennametal 26.99 to 27.49mm, 3xD, 80.96mm Max Depth, 1-1/4" Shank Diam, 4.22" Flute, 7.63" OAL, Replaceable-Tip Drill Uses KSEM1063 Inserts, Seat Size 6, Series KSEM
Manufacturer Part #: 2238560
S/N: 01293760
UNSPSC: 23291502
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Drill Diameter (Decimal Inch) | 1.0626 |
| Minimum Drill Diameter (mm) | 26.99 |
| Maximum Drill Diameter (mm) | 27.49 |
| Maximum Drill Diameter (Decimal Inch) | 1.0823 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 80.96 |
| Maximum Drill Depth (Decimal Inch) | 3.1900 |
| Shank Type | Straight-Cylindrical |
| Insert Seat Size | 6 |
| Shank Diameter (mm) | 31.75mm |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Maximum Drill Depth Range (mm) | 80.00 to 100.00 |
| Compatible Insert Style | KSEM1063 |
| Overall Length (Decimal Inch) | 7.6300in |
| Series | KSEM |
| Flute Length (Decimal Inch) | 4.2200 |
| Shank Length (Decimal Inch) | 3.2500in |
| Shank Length (mm) | 82.55mm |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
