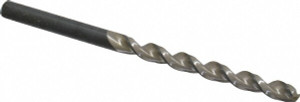

Walter Titex #10 130° High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-3/8" OAL, Standard Point 5059350 - 01463108
Brand: Walter Titex- SKU:
- 01463108
- ID:
- 729545
$13.74
Walter Titex #10 130° High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-3/8" OAL, Standard Point
Manufacturer Part #: 5059350
S/N: 01463108
UNSPSC: 23241634
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Drill Bit Size (Wire) | #10 |
| Drill Bit Size (Decimal Inch) | 0.1935 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Cast Iron, Non-Ferrous Metal, Steel |
| Coolant Through | No |
| Drill Bit Finish/Coating | Oxide |
| Flute Length (Inch) | 2-1/16 |
| Primary Workpiece Material Code | K, N, P |
| Shank Diameter (Decimal Inch) | 0.1935 |
| Overall Length (Inch) | 3-3/8 |
| Series | A1222 |
| Tool Application | Blind Hole, Stack Drilling |
| Flute By Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 1.7320 |
| Maximum Drilling Depth (mm) | 44.00 |
| Shank Length (mm) | 34.00 |
| Shank Length (Decimal Inch) | 1.3390 |
| Drill Point Length (mm) | 1.15 |
| Drill Point Length (Decimal Inch) | 0.0451 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | High Performance |
| Standards | ANSI, ISO |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Specification Designation | BS, DIN |
| UNSPSC Code | 23241634 |
