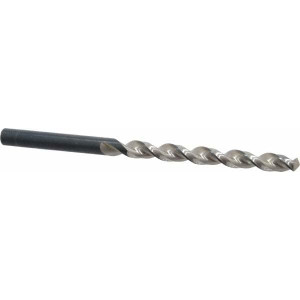

Walter Titex Letter C 130° High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-31/32" OAL, Standard Point 5059325 - 01464031
Brand: Walter Titex- SKU:
- 01464031
- ID:
- 729637
$25.90
Walter Titex Letter C 130° High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-31/32" OAL, Standard Point
Manufacturer Part #: 5059325
S/N: 01464031
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Letter) | C |
| Drill Bit Size (Decimal Inch) | 0.2420 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Cast Iron, Non-Ferrous Metal, Steel |
| Coolant Through | No |
| Drill Bit Finish/Coating | Oxide |
| Flute Length (Inch) | 2-15/32 |
| Primary Workpiece Material Code | K, N, P |
| Shank Diameter (Decimal Inch) | 0.2420 |
| Overall Length (Inch) | 3-31/32 |
| Series | A1222 |
| Tool Application | Blind Hole, Stack Drilling |
| Flute By Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 2.0470 |
| Maximum Drilling Depth (mm) | 52.00 |
| Shank Length (mm) | 38.00 |
| Shank Length (Decimal Inch) | 1.4960 |
| Drill Point Length (mm) | 1.43 |
| Drill Point Length (Decimal Inch) | 0.0564 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | High Performance |
| Standards | ANSI, ISO |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Specification Designation | BS, DIN |
| UNSPSC Code | 23241634 |
