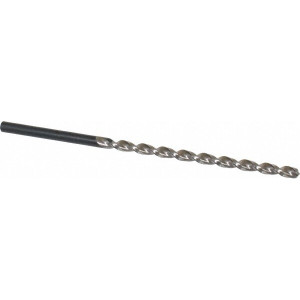

Walter Titex #10 130° Parabolic Flute High Speed Steel Taper Length Drill Bit Oxide Finish, 3-7/16" Flute Length, 5-3/16" OAL, Standard Point, Straight Shank, Series A1522 5155138 - 01466101
Brand: Walter Titex- SKU:
- 01466101
- ID:
- 746921
$27.06
Walter Titex #10 130° Parabolic Flute High Speed Steel Taper Length Drill Bit Oxide Finish, 3-7/16" Flute Length, 5-3/16" OAL, Standard Point, Straight Shank, Series A1522
Manufacturer Part #: 5155138
S/N: 01466101
UNSPSC: 23241600
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Drill Bit Size (Wire) | #10 |
| Drill Bit Size (Decimal Inch) | 0.1935 |
| Tool Material | High-Speed Steel |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Black Oxide |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Parallel |
| Threaded Shank | No |
| Shank Diameter (mm) | 4.91mm |
| Flute Length x Diamter Ratio | 12xD |
| Material Application3 | Aluminum, Aluminum Silicon Alloy, Brass, Bronze, Copper Alloy, Stainless Steel, Steel |
| Overall Length (Decimal Inch) | 5-3/16in |
| Series | A1522 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Flute Length X Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 3.1100 |
| Maximum Drilling Depth (mm) | 79.00 |
| Shank Length (Decimal Inch) | 1.7720in |
| Shank Length (mm) | 45.00mm |
| Flute Length (Inch) | 3-7/16 |
| Drill Point Length (Decimal Inch) | 0.0451 |
| Drill Point Length (mm) | 1.15 |
| Drill Bit Diameter Tolerance | -0.00071 to 0.00000 in, -0.018 to 0.000 mm |
| Tool Application | Blind Hole, Stack Drilling, Through Hole Drilling |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Standards | DIN 340 |
| Drill Bit Grade | High Performance |
| Spiral Type | Regular |
| UNSPSC Code | 23241600 |
