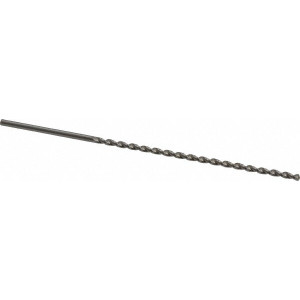

Walter Titex #50 130° Parabolic Flute High Speed Steel Taper Length Drill Bit Bright Finish, 2-3/32" Flute Length, 3-5/32" OAL, Standard Point, Straight Shank, Series A1522 5154094 - 01466507
Brand: Walter Titex- SKU:
- 01466507
- ID:
- 746861
$22.02
Walter Titex #50 130° Parabolic Flute High Speed Steel Taper Length Drill Bit Bright Finish, 2-3/32" Flute Length, 3-5/32" OAL, Standard Point, Straight Shank, Series A1522
Manufacturer Part #: 5154094
S/N: 01466507
UNSPSC: 23241600
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Drill Bit Size (Wire) | #50 |
| Drill Bit Size (Decimal Inch) | 0.0700 |
| Tool Material | High Speed Steel |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Parallel |
| Threaded Shank | No |
| Shank Diameter (mm) | 1.77 |
| Flute Length x Diamter Ratio | 12xD |
| Material Application3 | Aluminum, Aluminum Silicon, Brass, Bronze, Copper Alloy, Stainless Steel, Steel |
| Overall Length (Decimal Inch) | 3-5/32 |
| Series | A1522 |
| Shank Diameter (Decimal Inch) | 0.0700 |
| Flute Length X Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 1.9690 |
| Maximum Drilling Depth (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.0630 |
| Shank Length (mm) | 27.00 |
| Flute Length (Inch) | 2-3/32 |
| Shank Length (Inch) | 1-1/16 |
| Drill Point Length (Decimal Inch) | 0.0163 |
| Drill Bit Diameter Tolerance | -0.00055 to 0.00000 in, -0.014 to 0.000 mm |
| Tool Application | Blind Hole, Stack Drilling, Through Hole Drilling |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Standards | DIN 340 |
| Drill Bit Grade | High Performance |
| Spiral Type | Regular |
