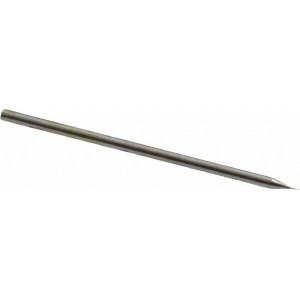

Walter Titex 0.07mm, 118° Point, Cobalt Micro Drill Bit 25mm OAL, 0.4mm Flute Length, 1mm Shank Diam, Series A3143 5062841 - 01480078
Brand: Walter Titex- SKU:
- 01480078
- ID:
- 731968
$31.79
Walter Titex 0.07mm, 118° Point, Cobalt Micro Drill Bit 25mm OAL, 0.4mm Flute Length, 1mm Shank Diam, Series A3143
Manufacturer Part #: 5062841
S/N: 01480078
UNSPSC: 23241600
(Minimum Order Quantity=5)
(Please order in multiples of 5)
Specifications:
| Drill Bit Size (Decimal Inch) | 0.0028 |
| Tool Material | Cobalt |
| Flute Length (mm) | 0.40 |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Drill Point Angle | 118 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 0.20 |
| Series | A3143 |
| Overall Length (mm) | 25.00mm |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Standard |
| Tool Application | Blind Hole, Stack Drilling, Through Hole Drilling |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance | +0.000 to -0.004 mm |
| Primary Workpiece Material | Titanium Alloy |
| Primary Workpiece Material Code | K, N, P, S |
| Secondary Workpiece Material | Glass, Graphite |
| Secondary Workpiece Material Code | M, O |
| Standards | DIN 1899 |
| Shank Diameter (mm) | 1.00mm |
| Flute By Diameter Ratio | 5xD |
| Material Grade | M35 |
| Spiral Type | Regular |
| Specification Number | DIN 1899 |
| UNSPSC Code | 23241600 |
