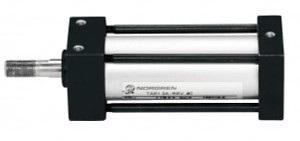

Norgren 1" Stroke x 3/4" Bore Single Acting Air Cylinder 1/8 Port, 5/16-18 Rod Thread, 150 Max psi, -20 to 200°F TC-5/16-3/4X1 - 01515402
Brand: Norgren- SKU:
- 01515402
- ID:
- 575232
$128.55
Norgren 1" Stroke x 3/4" Bore Single Acting Air Cylinder 1/8 Port, 5/16-18 Rod Thread, 150 Max psi, -20 to 200°F
Manufacturer Part #: TC-5/16-3/4X1
S/N: 01515402
UNSPSC: 27131701
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Type | Single Acting |
| Bore Size (Inch) | 3/4 |
| Bore Size (Decimal Inch) | 0.75 |
| Rod Diameter (Decimal Inch) | 0.3130 |
| Stroke Length (Inch) | 1 |
| Mounting Style | Clevis |
| Port Size | 1/8 |
| Port Type | NPTF |
| Maximum Working Pressure (psi) | 150 |
| Rod Thread Size | 5/16-18 |
| Style | Square |
| PSC Code | 3442 |
