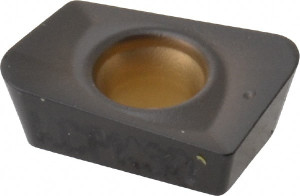

Kennametal ADKT103516PDERLKCPK30 Carbide Milling Insert TiN/TiCN/Al2O3 Finish, 0.3937" Long x 0.1378" Thick x 0.2638" Wide 2245283 - 01654490
Brand: Kennametal- SKU:
- 01654490
- ID:
- 660878
$35.75
Kennametal ADKT103516PDERLKCPK30 Carbide Milling Insert TiN/TiCN/Al2O3 Finish, 0.3937" Long x 0.1378" Thick x 0.2638" Wide
Manufacturer Part #: 2245283
S/N: 01654490
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | ADKT |
| Insert Size | 16 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | KCPK30 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1378 |
| Coating/Finish | TiN, TiCN, Al2O3 |
| Relief Angle | 15 |
| Maximum Depth of Cut (Decimal Inch) | 0.5510 |
| Insert Size Code | 16224 |
| Material Grade | C1, C5, C6 |
| Inscribed Circle (Decimal Inch) | 0.5512 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Inch) | 1/16 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Series | ADKT |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.11 |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, K, S |
| Iso Code | ADKT103516PDERLC |
| Rake Angle | 7 |
| Manufacturers Catalog Number | ADKT103516PDERLC |
| Chip Breaker | LC |
| Material Application | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.2638 |
| Length (Decimal Inch - 4 Decimals) | 0.3937 |
