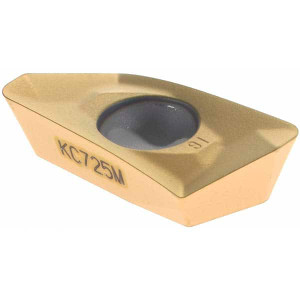

Kennametal EP1816E KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.8575" Long x 0.217" Thick x 0.431" Wide 2271064 - 01654565
Brand: Kennametal- SKU:
- 01654565
- ID:
- 660882
$32.08
Kennametal EP1816E KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.8575" Long x 0.217" Thick x 0.431" Wide
Manufacturer Part #: 2271064
S/N: 01654565
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | EDPT |
| Insert Size | 18 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | KC725M |
| Corner Radius (Decimal Inch) | 0.0620 |
| Corner Radius (mm) | 1.60 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2170 |
| Coating/Finish | TiAlN |
| Relief Angle | 15.00 |
| Insert Size Code | 1816 |
| Material Grade | C5, C6, C7 |
| Inscribed Circle (Decimal Inch) | 0.4310 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Inch) | 1/16 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Series | EDPT |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Ansi Code | EP1816E |
| Iso Code | EDPT180516PDERGD |
| Standards | ANSI, ISO |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | EDPT180516PDERGD |
| Cutter Series Compatibility | Mill 1-18 |
| Chip Breaker | GD |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 70 |
| Width (Decimal Inch - 4 Decimals) | 0.4310 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.8580 |
