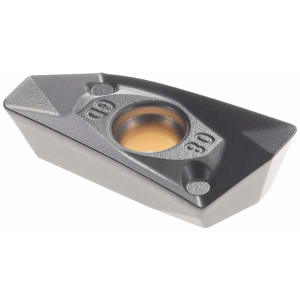

Kennametal EP1408SGD KCPK30 Carbide Milling Insert TiN/TiCN/Al2O3 Finish, 0.6878" Long x 0.177" Thick x 0.33" Wide 2980531 - 01655208
Brand: Kennametal- SKU:
- 01655208
- ID:
- 660925
$32.20
Kennametal EP1408SGD KCPK30 Carbide Milling Insert TiN/TiCN/Al2O3 Finish, 0.6878" Long x 0.177" Thick x 0.33" Wide
Manufacturer Part #: 2980531
S/N: 01655208
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | EDPT |
| Insert Size | 14 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | KCPK30 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1770 |
| Coating/Finish | TiN, TiCN, Al2O3 |
| Relief Angle | 15.00 |
| Insert Size Code | 1408 |
| Material Grade | C1, C5, C6 |
| Length (Inch) | 11/16 |
| Inscribed Circle (Decimal Inch) | 0.6295 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Length Range (Decimal Inch) | 0.6500 to 0.7000 |
| Insert Hand | Right Hand |
| Series | EDPT |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.13 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, K, S |
| Ansi Code | EP1408SGD |
| Iso Code | EDPT140408PDSRGD |
| Standards | ANSI, ISO |
| Cutting Edge Style | Chamfered, Honed |
| Manufacturers Catalog Number | EDPT140408PDSRGD |
| Cutter Series Compatibility | Mill 1-14 |
| Chip Breaker | GD |
| Material Application | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 70 |
| Width (Decimal Inch - 4 Decimals) | 0.6295 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6879 |
