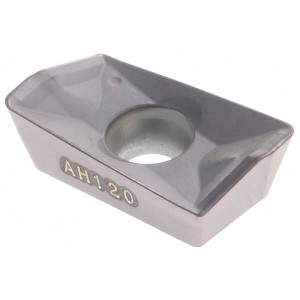

Tungaloy ASMT11T308PDPRMJ AH120 Carbide Milling Insert TiAlN Finish, 0.457" Long x 0.146" Thick x 0.264" Wide 6822078 - 01681949

Tungaloy ASMT11T308PDPRMJ AH120 Carbide Milling Insert TiAlN Finish, 0.457" Long x 0.146" Thick x 0.264" Wide 6822078 - 01681949

Brand:   Tungaloy
SKU:
01681949
ID:
663344
UPC:
677162220784
callling
$24.90
Current Stock:
Adding to cart… The item has been added

Tungaloy

Tungaloy ASMT11T308PDPRMJ AH120 Carbide Milling Insert TiAlN Finish, 0.457" Long x 0.146" Thick x 0.264" Wide

Manufacturer Part #: 6822078

S/N: 01681949

UNSPSC: 23291601

UPC: 677162220784

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleASMT
Insert Size11
Insert MaterialSolid Carbide
Insert ShapeParallelogram
Manufacturer GradeAH120
Corner Radius (Decimal Inch)0.0315
Number Of Cutting Edges2
Thickness (Decimal Inch - 4 Decimals)0.1460
Coating/FinishTiAlN
Relief Angle11.00
Maximum Depth of Cut (Decimal Inch)0.4170
Maximum Depth of Cut (mm)10.60
Insert Size Code11T308
Material GradeP15, M15, K15, S10
Length (Inch)31/64
Inscribed Circle (Decimal Inch)0.2640
Thickness Range (Decimal Inch)0.1250 to 0.1500
Corner Radius (Inch)1/32
Inscribed Circle Range (Decimal Inch)0.2500 to 0.3000
Length Range (Decimal Inch)0.4500 to 0.5000
Insert HandRight Hand
SeriesASMT
Coating ProcessPVD
RakePositive
Primary Workpiece MaterialSteel, Stainless Steel, Cast Iron, Hard Material, Superalloys & Titanium
Primary Workpiece Material CodeP, M, K, H, S
Ansi CodeASMT11T308PDPR-MJ AH120
Iso CodeASMT11T308PDPR-MJ AH120
StandardsISO
Cutting Edge StyleHoned
Manufacturers Catalog NumberASMT11T308PDPR-MJ
Cutter Series CompatibilityEPS11, TLS11, ELS11, HPO11-M, EPO11, TPO11
Chip BreakerMJ
Material ApplicationSteel, Stainless Steel, Cast Iron, Hard Material, Superalloys & Titanium
UNSPSC Code23291601
Insert Holding MethodScrew
Coating ClassificationPVD
Single or Double Sided InsertSingle
Included Angle Degree85
Width (Decimal Inch - 4 Decimals)0.2640
Multi-Use ToolNo
Length (Decimal Inch - 4 Decimals)0.4840
