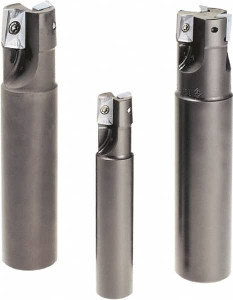

Tungaloy 5/8" Cut Diam, 0.429" Max Depth, 5/8" Shank Diam, Weldon Shank, 3.35" OAL, Indexable Square-Shoulder End Mill EPS Toolholder, Uses ASMT 11T3 Insert Style, 90° Lead Angle 6829499 - 01682293

Tungaloy 5/8" Cut Diam, 0.429" Max Depth, 5/8" Shank Diam, Weldon Shank, 3.35" OAL, Indexable Square-Shoulder End Mill EPS Toolholder, Uses ASMT 11T3 Insert Style, 90° Lead Angle 6829499 - 01682293

Brand:   Tungaloy
SKU:
01682293
ID:
680409
UPC:
677162294990
callling
$516.90
Current Stock:
Adding to cart… The item has been added

Tungaloy

Tungaloy 5/8" Cut Diam, 0.429" Max Depth, 5/8" Shank Diam, Weldon Shank, 3.35" OAL, Indexable Square-Shoulder End Mill EPS Toolholder, Uses ASMT 11T3 Insert Style, 90° Lead Angle

Manufacturer Part #: 6829499

S/N: 01682293

UNSPSC: 27112803

UPC: 677162294990

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Maximum Depth of Cut (Decimal Inch)0.4290
Cutter StyleEPS
Shank TypeWeldon Flat
Shank Diameter (Decimal Inch)0.6250
Shank Diameter (Inch)5/8
Insert Holding MethodScrew
Lead Angle90
Shank Length (Decimal Inch)2.3600
Head Length (Decimal Inch)1.0000
Tool ApplicationMilling
StandardsISO
Insert CompatibilityASMT 11T3..
ISO NumberEPS11062RSU
Number Of Flutes2
Usable Length (Decimal Inch)3.3460
Number Of Cutter Inserts2
Coolant ThroughNo
