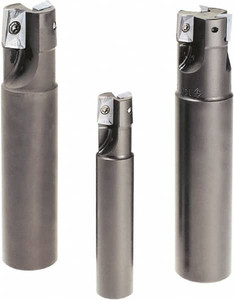

Tungaloy 1-1/2" Cut Diam, 0.638" Max Depth, 1-1/2" Shank Diam, Weldon Shank, 3.74" OAL, Indexable Square-Shoulder End Mill EPS Toolholder, Uses ASMT 1705 Insert Style, 90° Lead Angle 6843442 - 01682400

Tungaloy 1-1/2" Cut Diam, 0.638" Max Depth, 1-1/2" Shank Diam, Weldon Shank, 3.74" OAL, Indexable Square-Shoulder End Mill EPS Toolholder, Uses ASMT 1705 Insert Style, 90° Lead Angle 6843442 - 01682400

Brand:   Tungaloy
SKU:
01682400
ID:
680410
UPC:
677162434426
callling
$733.62
Current Stock:
Adding to cart… The item has been added

Tungaloy

Tungaloy 1-1/2" Cut Diam, 0.638" Max Depth, 1-1/2" Shank Diam, Weldon Shank, 3.74" OAL, Indexable Square-Shoulder End Mill EPS Toolholder, Uses ASMT 1705 Insert Style, 90° Lead Angle

Manufacturer Part #: 6843442

S/N: 01682400

UNSPSC: 27112803

UPC: 677162434426

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Maximum Depth of Cut (Decimal Inch)0.6380
Cutter StyleEPS
Shank TypeWeldon Flat
Shank Diameter (Decimal Inch)1.5000
Shank Diameter (Inch)1-1/2
Insert Holding MethodScrew
Lead Angle90
Shank Length (Decimal Inch)2.3600
Head Length (Decimal Inch)1.3800
Tool ApplicationMilling
StandardsISO
Insert CompatibilityASMT 1705..
ISO NumberEPS17150RSBU
Number Of Flutes4
Usable Length (Decimal Inch)3.7400
Number Of Cutter Inserts4
Coolant ThroughNo
