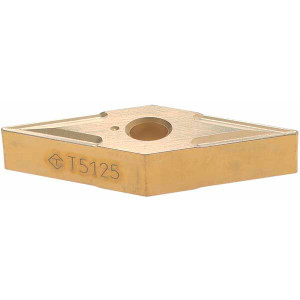

Tungaloy VNMG331 T5125 Carbide Turning Insert TiCN/Al2O3 Finish, 3/8" Inscribed Circle, 1/64" Corner Radius, 35° Diamond 6852939 - 01683929
Brand: Tungaloy- SKU:
- 01683929
- ID:
- 677913
$25.13
Tungaloy VNMG331 T5125 Carbide Turning Insert TiCN/Al2O3 Finish, 3/8" Inscribed Circle, 1/64" Corner Radius, 35° Diamond
Manufacturer Part #: 6852939
S/N: 01683929
UNSPSC: 23242105
UPC: 677162094231
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| ANSI Insert Code | VNMG331 |
| ISO Insert Code | VNMG160404 |
| Relief Angle | 0 |
| Insert Style | VNMG |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35 |
| Manufacturer Grade | T5125 |
| Coating/Finish | TiCN, Al2O3, TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | VNMG |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Medium Machining |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Insert Holding Method | Clamp, Pin |
| Width (Inch) | 3/8 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.3080 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Iso Code | VNMG 331 |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 6852939 |
| Material Grade | K15, K30 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | Common |
| Rake Angle | -15 |
| Cutting Edge Style | Chamfered, Honed |
| Industry Standard Number | VNMG 331 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring, Back Turning, Back Boring |
| ANSI Size Code | 331 |
| ISO Size Code | 160404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 331 |
