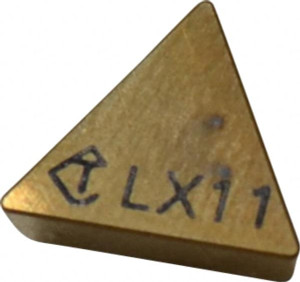

Tungaloy TPGN221 LX11 Ceramic Turning Insert TiN Finish, 1/4" Inscribed Circle, 1/64" Corner Radius, 60° Triangle 6808820 - 01686310
Brand: Tungaloy- SKU:
- 01686310
- ID:
- 677942
$23.00
Tungaloy TPGN221 LX11 Ceramic Turning Insert TiN Finish, 1/4" Inscribed Circle, 1/64" Corner Radius, 60° Triangle
Manufacturer Part #: 6808820
S/N: 01686310
UNSPSC: 23242105
UPC: 677162088209
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 11 |
| Insert Style | TPGN |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60degree |
| Manufacturer Grade | LX11 |
| Coating/Finish | TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | TPM/GN |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Ceramic |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Clamp |
| Clearance Code | P |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4330 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Iso Code | TPGN221 |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 6808820 |
| Material Grade | Alumina TiC |
| Proprietary Coating Designation | TiN |
| Coating Classification | PVD |
| Chip Breaker | Flat Top |
| Rake Angle | 0 |
| Cutting Edge Style | Honed |
| Industry Standard Number | TPGN 221 |
| Width (Decimal Inch - 4 Decimals) | 0.4330in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 221 |
