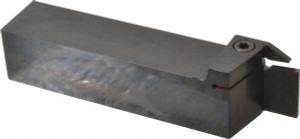

Kennametal 17mm Max Depth, 4mm Min Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6" OAL, 1-1/4" x 1-1/4" Shank, Uses A4..04.. Inserts, A4SM Toolholder, Series A4 1957226 - 01723790
Brand: Kennametal- SKU:
- 01723790
- ID:
- 686060
$288.68
Kennametal 17mm Max Depth, 4mm Min Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6" OAL, 1-1/4" x 1-1/4" Shank, Uses A4..04.. Inserts, A4SM Toolholder, Series A4
Manufacturer Part #: 1957226
S/N: 01723790
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6700 |
| Maximum Depth of Cut (mm) | 17.00 |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Minimum Groove Width (mm) | 4.00 |
| Toolholder Style | A4SM |
| Insert Holding Method | Clamp |
| Insert Compatibility | A4..04.. |
| Shank Height (mm) | 31.75 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Length (mm) | 115.40 |
| Shank Length (Decimal Inch) | 4.5433 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (mm) | 31.75 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Series | A4 |
| Overall Length (mm) | 152.40 |
| Full Radius Insert | No |
| Head Height (Decimal Inch) | 1.5400 |
| Head Height (mm) | 39.00 |
| Head Length (Decimal Inch) | 1.4600 |
| Head Length (mm) | 37.00 |
| Insert Seat Size | 4.0 |
| Coating Classification | Kennametal |
| MSC/Manufacturer Number | A4SMR/L200417 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
