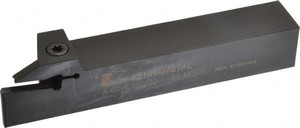

Kennametal 20mm Max Depth, 6mm Min Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6" OAL, 1" x 1" Shank, Uses A4..06.. Inserts, A4SM Toolholder, Series A4 2263176 - 01723949
Brand: Kennametal- SKU:
- 01723949
- ID:
- 686048
$292.26
Kennametal 20mm Max Depth, 6mm Min Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6" OAL, 1" x 1" Shank, Uses A4..06.. Inserts, A4SM Toolholder, Series A4
Manufacturer Part #: 2263176
S/N: 01723949
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7900 |
| Maximum Depth of Cut (mm) | 20.00 |
| Minimum Groove Width (Decimal Inch) | 0.2360 |
| Minimum Groove Width (mm) | 6.00 |
| Toolholder Style | A4SM |
| Insert Holding Method | Clamp |
| Insert Compatibility | A4..06.. |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 112.70 |
| Shank Length (Decimal Inch) | 4.4370 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Series | A4 |
| Overall Length (mm) | 152.40 |
| Full Radius Insert | No |
| Head Height (Decimal Inch) | 1.3000 |
| Head Height (mm) | 33.00 |
| Head Length (Decimal Inch) | 1.5700 |
| Head Length (mm) | 40.00 |
| Insert Seat Size | 6.0 |
| Coating Classification | Kennametal |
| MSC/Manufacturer Number | A4SMR/L160620 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
